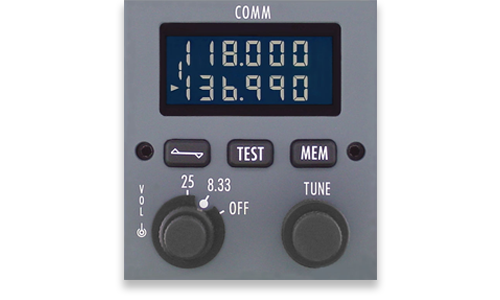

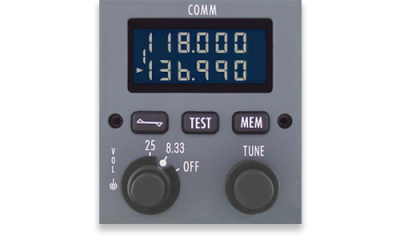

A VHF Comm panel for use on business, regional and general aviation aircraft. 28VDC input power and 8.33kHz capable.
VHF Comm
Description
- First Minima Twisted Nematic (FMTN) LCD Display
- Blue/White LED display and panel lighting for higher reliability

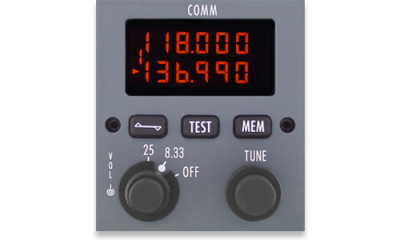

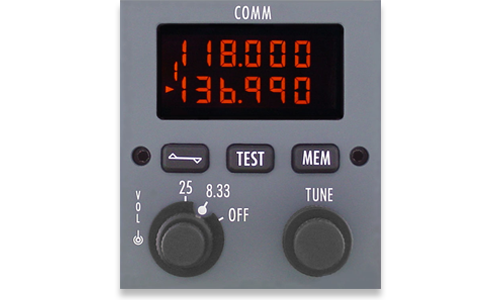

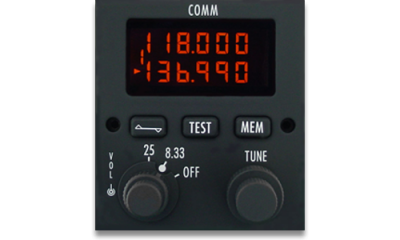

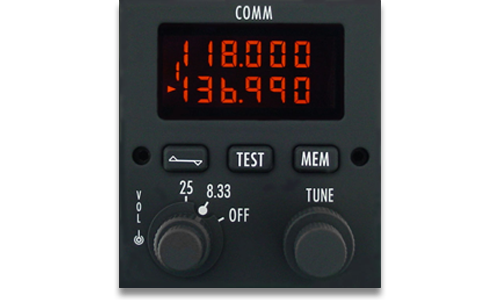

– White or amber color display and NVIS options available (variant dependent) - Active frequency on the upper display, standby on the lower (direct active tuning capable
- Single knob stack for standby or direct active frequency selection
- Transfer button for active and standby frequency interchange
- 8.33/25 kHz selection capable
- Liquid splash-proof design
- Built-in-test (BIT) capability
- Flash technology to support bench-level reprogramming using a PC
- ARINC 566A capable
- ARINC 429 capable
- CSDB capable
- Volume control
- VDL Mode 2 capability
- Squelch disable via comm TEST push button
- DATA mode selection via frequency selector
- Non-volatile storage of front panel settings and memories
- Modular design provides flexibility for custom layouts
- Modular construction contributes to economical maintenance
- 4 memory channels per mode
Additional information
| Calculated MTBF (op hours) | 20,000 |
|---|---|
| Certification - Aircraft | STC's available through third parties |
| Certification - Regulatory | TSO-C37d, TSO-C38d |

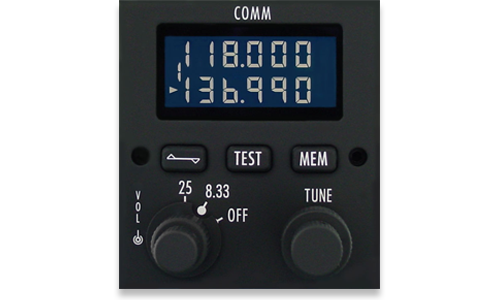

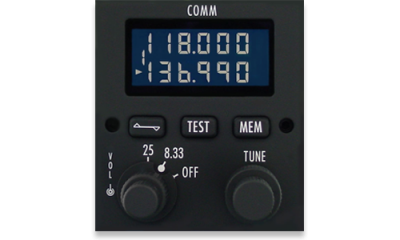

| Color | Black, Gray |
| Compliance | ARINC 429, ARINC 566A (COMM), ARINC 716, ARINC 720, ARINC 750, RTCA/DO-160D (Environmental), RTCA/DO-178B (Software), RTCA/DO-186A (VHF COMM) |
| Connectors | J1 Mating: MS3476L24-61SW, or equivalent 61 pin connector |
| Dimensions | 2.625 (height) x 2.375 (width) x 5.370 (depth) inches, excluding rear connector |
| Frequency Range | 118.00(0) to 136.97(5) MHz by 25 kHz steps, 118.000 to 136.990 MHz by 8.33 kHz steps, Optional extended range available via rear pin: 116.000 to 117.975 MHz, 137.000 to 151.975 MHz by 25 kHz steps |
| Lighting | Panel/DisplayLighting (Blue/WhiteLEDs) 0–5VAC/DC or 28VDC |
| Power | Power (Including all lighting) 28VDC, 7.0Watts (max) |
| Weight | 1.1 lbs |
